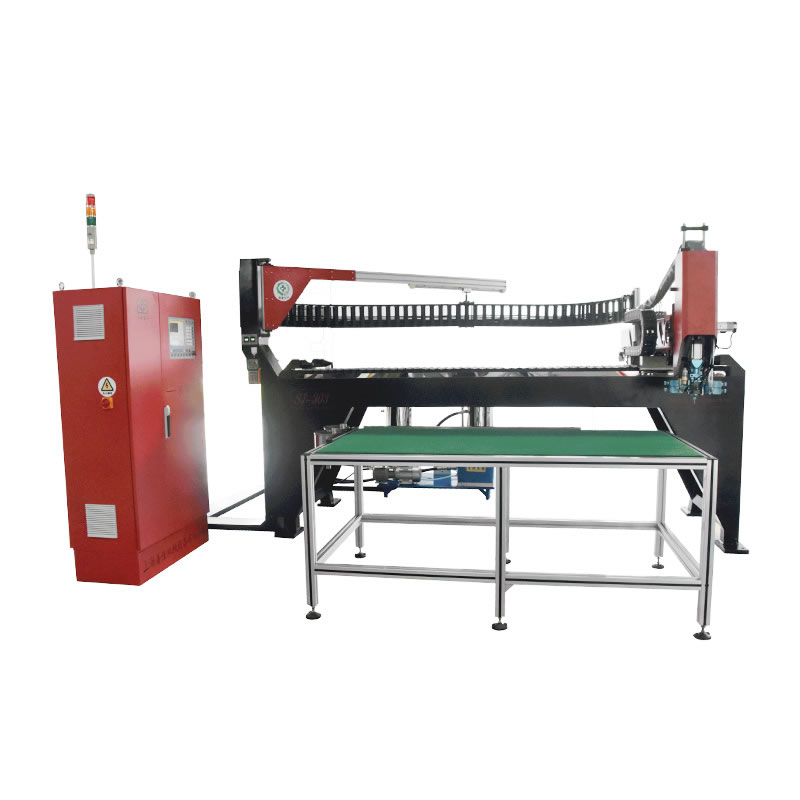

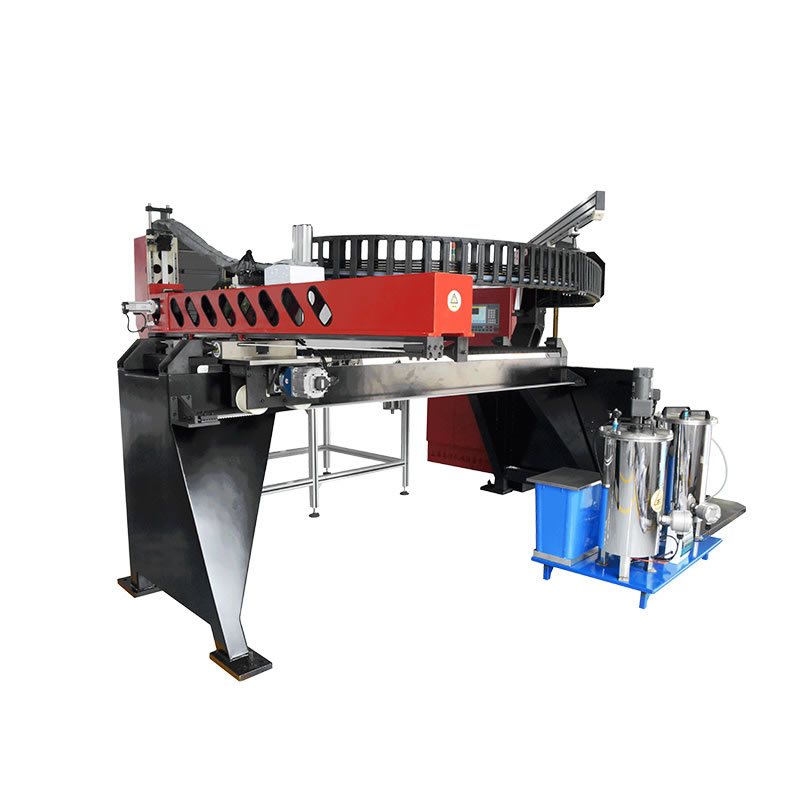

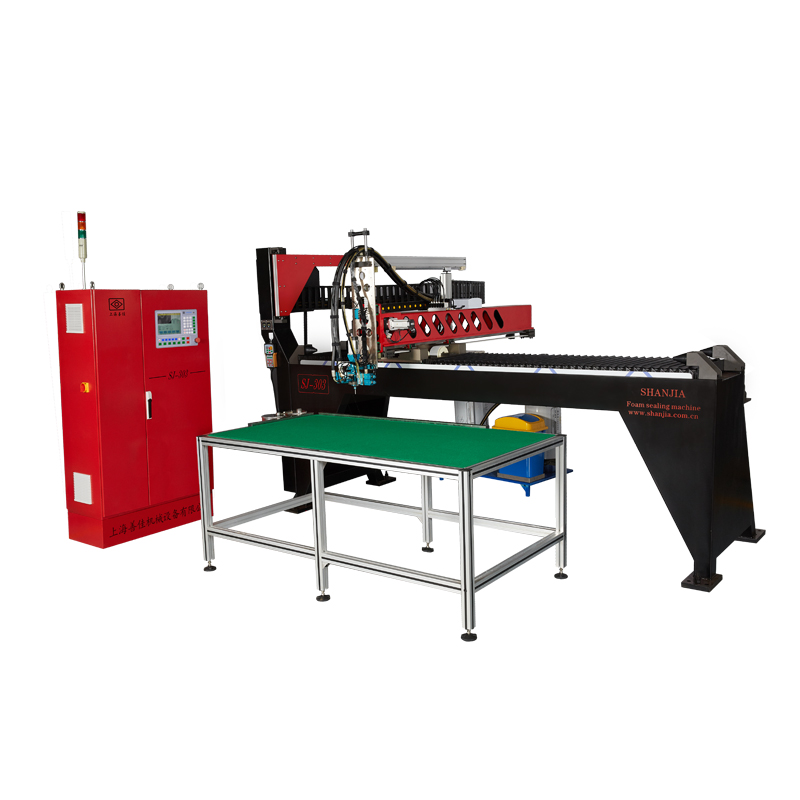

SJ-303Full Automatic Constant Glue Dispensing Machine

Model:SJ-303

Two-component polyurethane foam sealing gasket machine is independent research and production by Shanghai shanjia, which is suitable for the electrical control cabinet, filter, sheet metal, automobile, lighting and other industries. The sealing strip of processing is waterproof and dust-proof and adhesion. The protection grade can reach the grade advantage of IP67.

lucky@shanjia.com.cn
alana@shanjia.com.cn

1.Shanjia glue control system is developed by senior experts in Germany aiming at polyurethane raw materials.the human computer interface is optimized by localization.

 2.The system has the functions of intelligent operation simulation , graphic auto-generating function, u-disk guide, fault alarm, overpressure alarm, lack of alarm, etc.

 3.The equipment is driven by servo motor, running smoothly , 2D, 3D workpiece can be processed, CNC multi-dimensional difference, realize arbitrary trajectory coating.

4.The high precision mixing head (SJ400) with independent intellectual property rights has the excellent performance of instant blocking, preventing drop feeding, turbocharging, 360 degree cleaning without dead Angle

5.The metering pump is 100% original imported from the world's leading metering pump manufacturer, Germany (Barmag), and adopts the Japanese panasonic servo precision reducer drive to ensure the measurement accuracy.

 6.The stainless steel 316 double pressure tank equipped with automatic filling and intelligent thermostatic device can be used even in low temperature environment.Equipped with handheld operation panel,more easy to use.

Two-components Foam sealing gasket machine detailed technical parameters:


Items   Parameter  Note
 X×Y×Z  2250×1250×200(mm) 3-axis running
Accuracy of measurement  ±0.2%
 Work pressure limited and alarm  0-4 Mpa
Filter accuracy  40-50 um
 Output quantity  0.3-5 g/s
 The strip width  5-30mm
 Mixing ratio   1∶1-10∶1
 Running speed   0-30 m/min
 The repeated positioning accuracy  ±0.05mm
Pressure  ≥0.6Mpa
Total Power  3-4KW
 Frequency  50HZ
Voltage  three-phase five-wire380V
